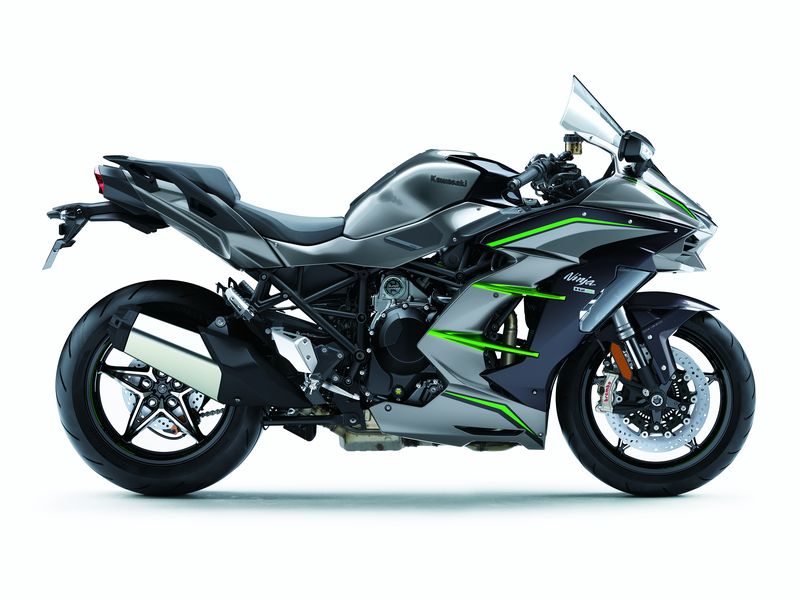

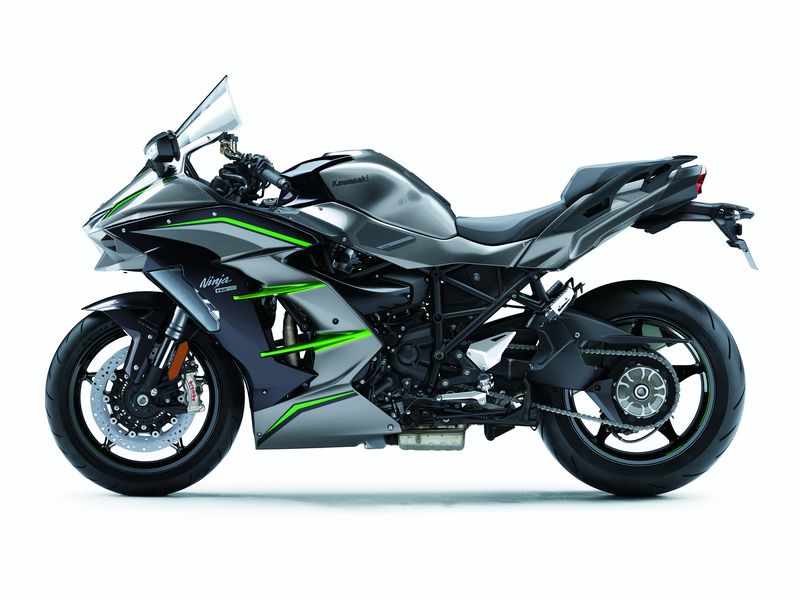

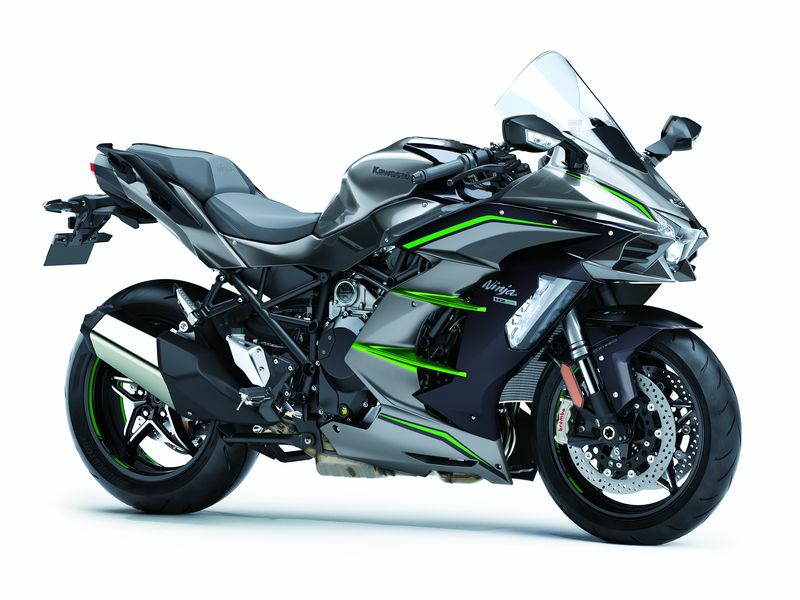

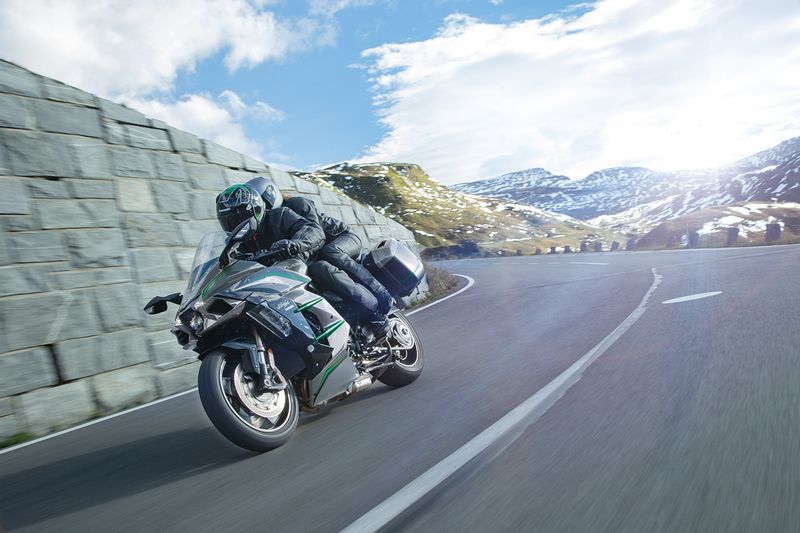

NINJA H2 SX SE+
colors

METALLIC GRAPHITE GRAY / METALLIC DIABLO BLACK / EMERALD BLAZED GREEN

Power
Engine
4-stroke, 4-cylinder, DOHC, 4-valve, liquid-cooled, supercharged
Displacement
998
Bore x Stroke
76.0 x 55.0mm
Compression Ratio
11.2:1
Fuel System
DFI® with 40mm throttle bodies (4) with dual injection
Ignition
Digital
Transmission
6-speed, return, dog-ring
Final Drive
Sealed chain
Performance
Front Suspension / Wheel Travel
43mm inverted fork with KECS-controlled rebound and compression damping, manual spring preload adjustability and top-out springs/119 mm
Rear Suspension / Wheel Travel

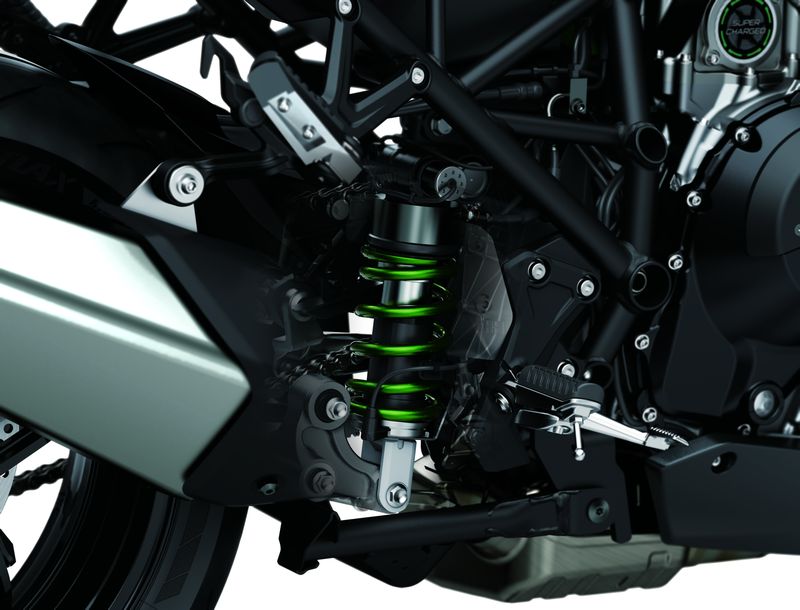

New Uni-Trak®, BFRC gas charged shock with piggyback reservoir, KECS-controlled compression and rebound damping electronically-adjustable spring preload/140 mm
Front Tire
120/70 ZR17 (58W)
Rear Tire
190/55 ZR17 (75W)
Front Brakes

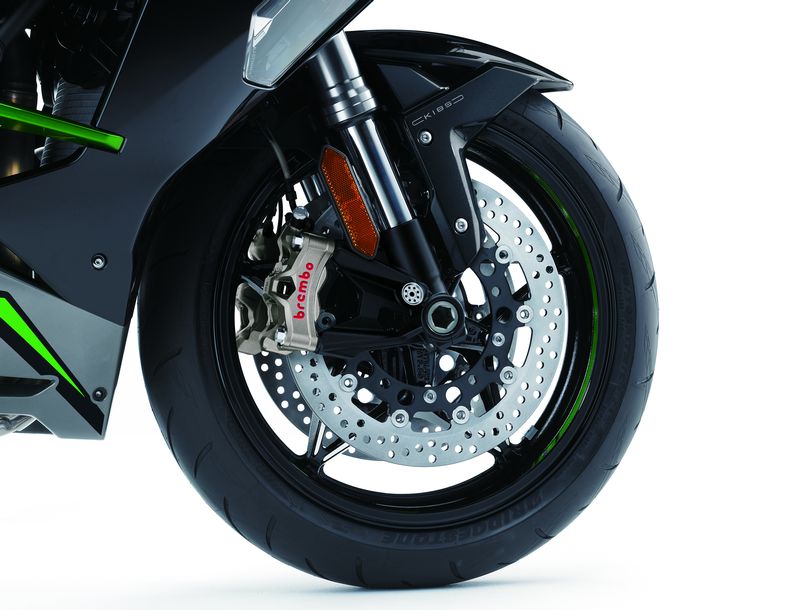

Dual radial-mount, opposed 4-piston Brembo Stylema® calipers, dual semi-floating 330mm discs, KIBS ABS
Rear Brakes
Opposed 2-piston calipers, single 250mm disc, KIBS ABS
Details
Rake/Trail
24.7/104 mm
Overall Width
1260
Overall Height
2136
Ground Clearance
775
Seat Height
836
Curb Weight
262 kg
Fuel Capacity
23 liters
Wheelbase
1519 mm
Color Choices
Metallic Graphite Gray/Metallic Diablo Black/Emerald Blazed Green

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
