2020

ADDITIONAL VEHICLE FEATURES:

  • Full-size wheels (21F, 18R) and ground clearance (12.4-inch)
  • Adjustable long travel suspension

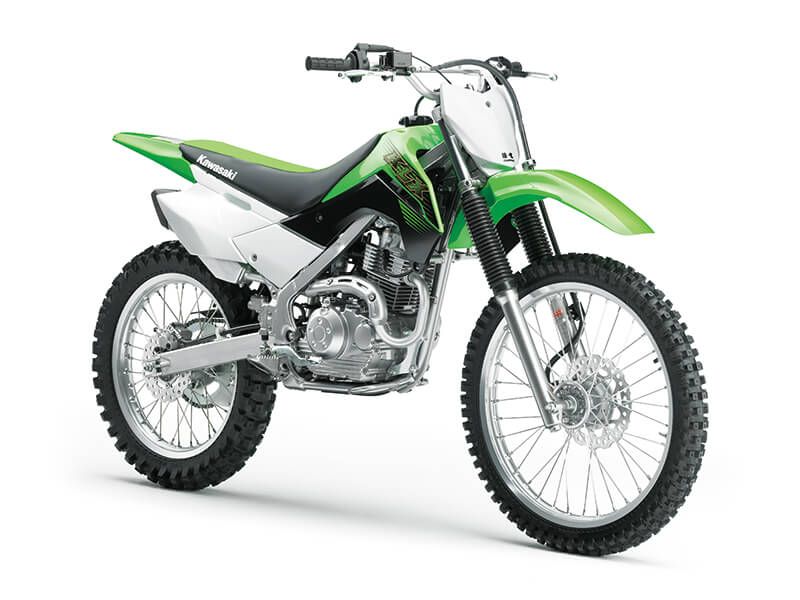

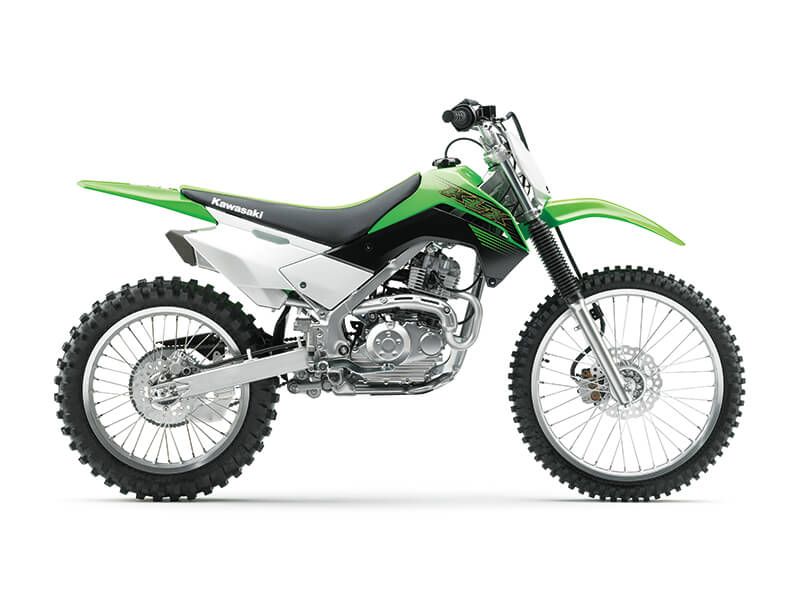

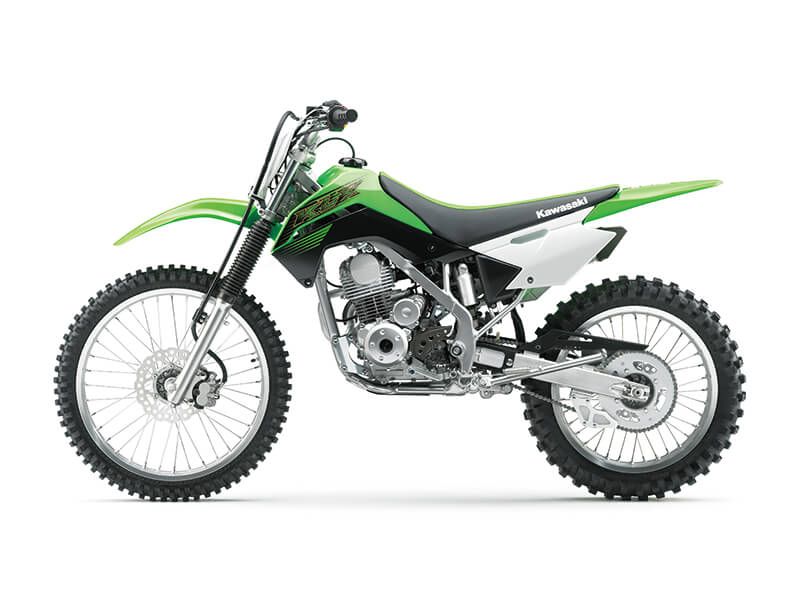

KLX140G
Power
Engine
4-stroke single, SOHC, air-cooled
Displacement
144
Bore x Stroke
58.0 x 54.4mm
Compression Ratio
9.5:1
Fuel System
20mm Keihin carburetor
Ignition
Digital DC-CDI
Transmission
5-speed, return shift, with wet multi-disc manual clutch
Final Drive
Chain
Performance
Front Suspension / Wheel Travel
33mm telescopic fork/7.5 in
Rear Suspension / Wheel Travel
Uni-Trak® linkage system and single shock with piggyback reservoir, 22-way rebound damping and threaded preload adjustability/7.9 in
Front Tire
2.75x21
Rear Tire
4.10x18
Front Brakes
Single 220mm petal disc with a dual-piston caliper
Rear Brakes
Single 186mm petal disc with single-piston caliper
Details
Frame Type
Tube, semi-double cradle
Rake/Trail
27°/4.6 in
Seat Height
861
Fuel Capacity
6 liters
Wheelbase
1331 mm
Color Choices
Lime Green

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
