2020

ADDITIONAL VEHICLE FEATURES:

  • New Front End Styling
  • New Quad Headlights
  • New WARN® VRX 45 Winch
  • New Contoured Front Bench Seat
  • Painted Grill and Bumper Plates
  • Speed-sensitive Electric Power Steering (EPS)
  • Sun top and Cast Aluminum Wheels

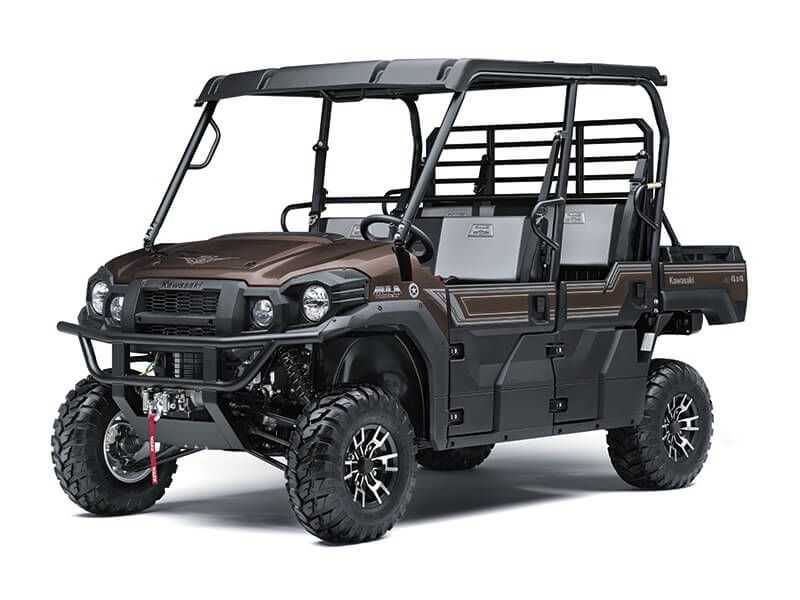

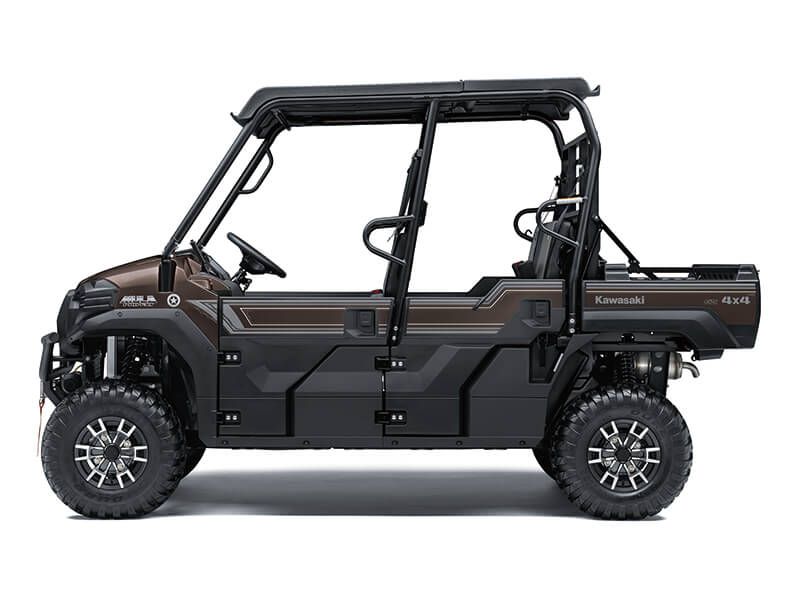

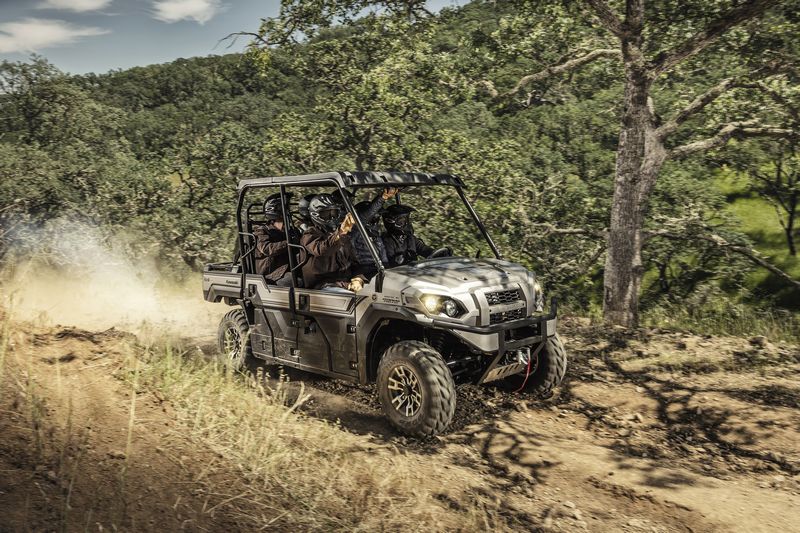

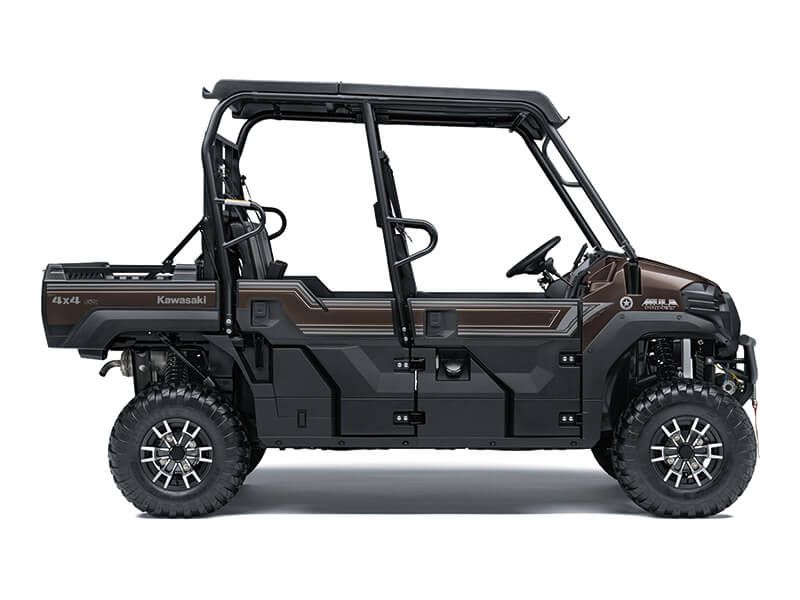

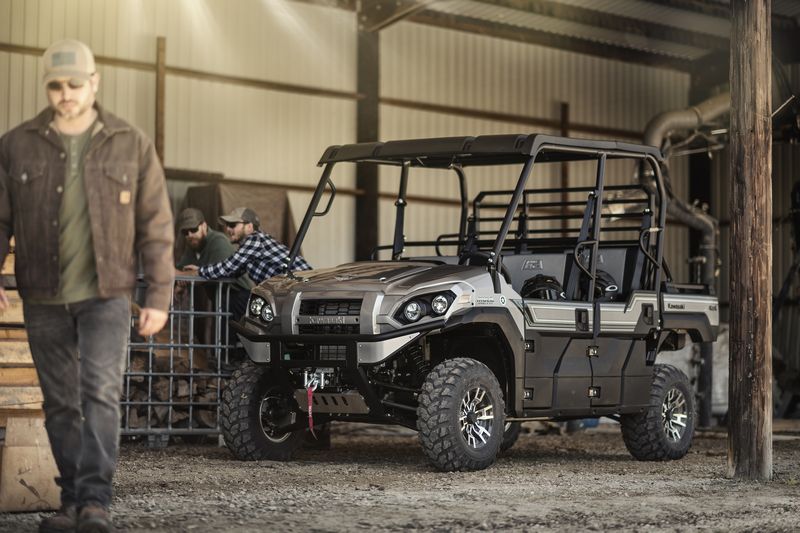

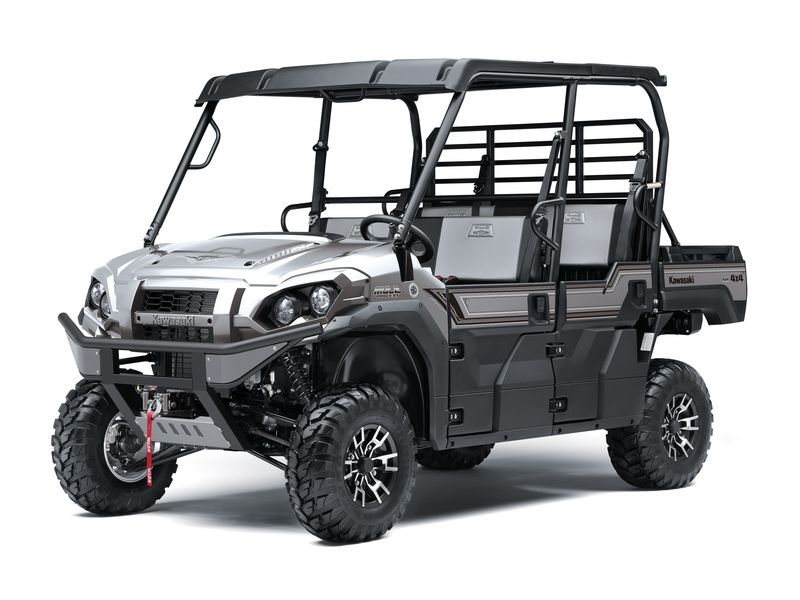

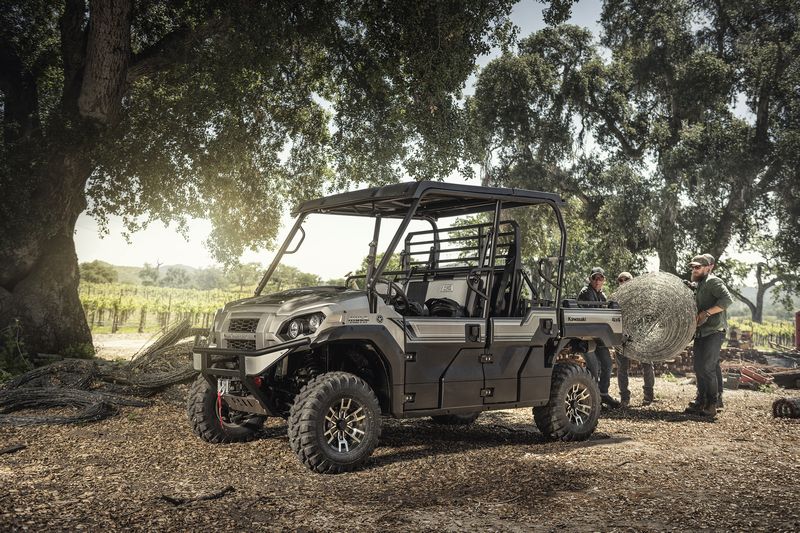

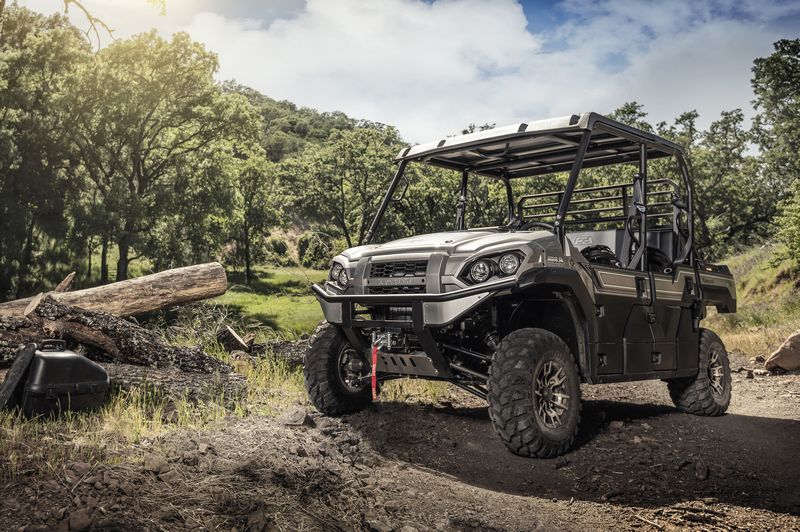

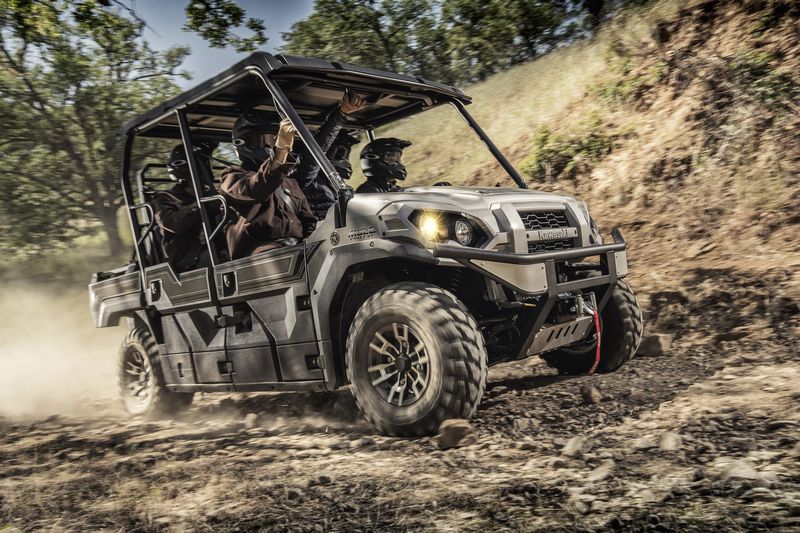

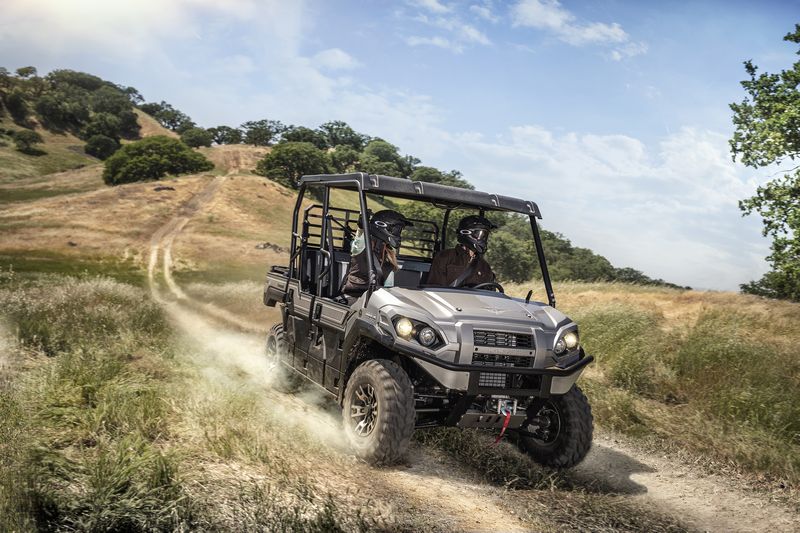

MULE PRO-FXT RANCH EDITION
MULE PRO-FXT RANCH EDITION
colors

METALLIC PHANTOM SILVER

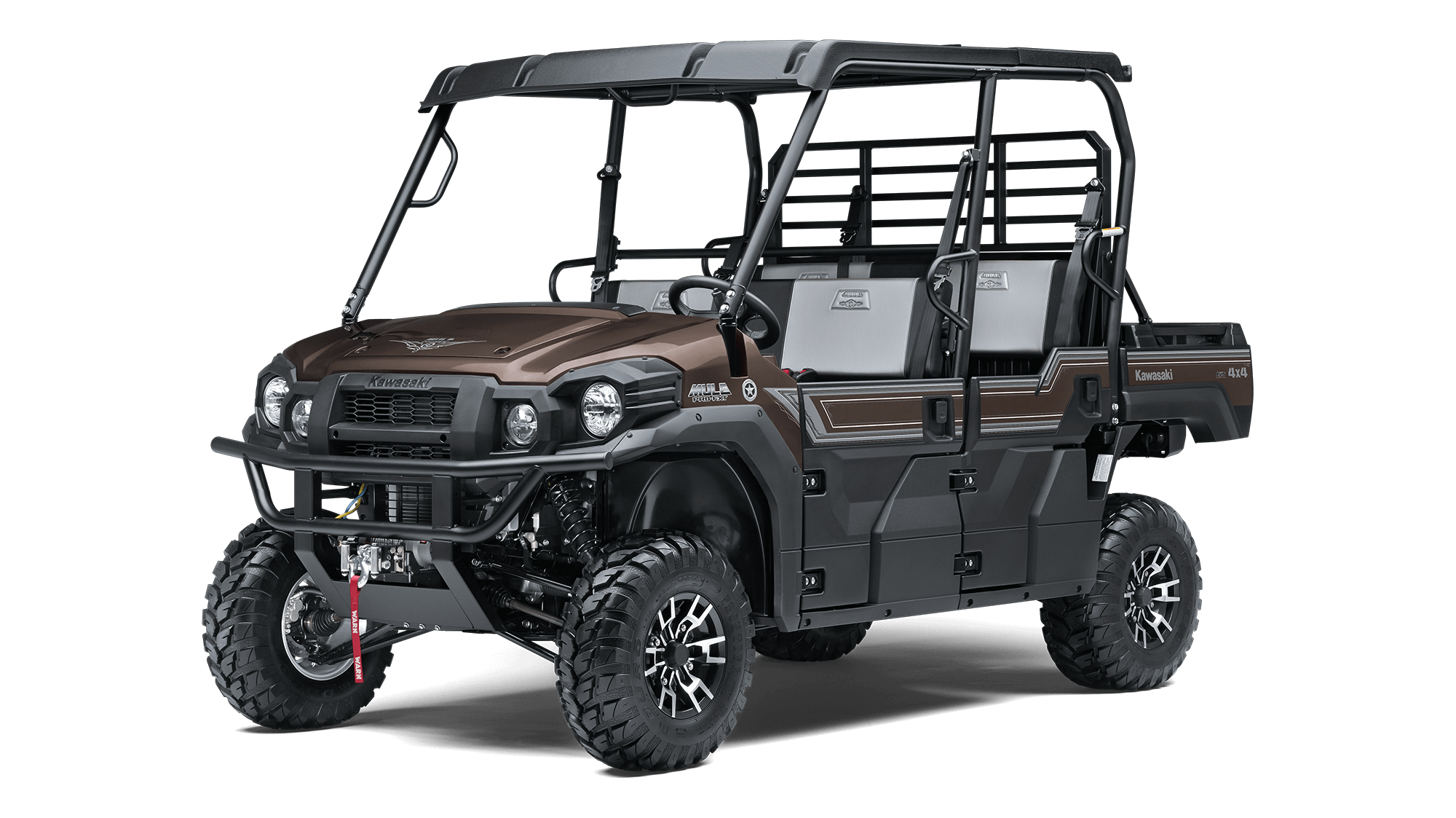

METALLIC RUSTIC BRONZE

Power
Engine
4-stroke, 3-cylinder, DOHC, liquid-cooled, gas
Displacement
812
Bore x Stroke
2.83x2.62 in
Compression Ratio
9.5:1
Fuel System
DFI® with 34mm throttle body
Transmission
Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive
Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Performance
Front Suspension / Wheel Travel
Double wishbone/8.7 in
Rear Suspension / Wheel Travel
Double wishbone/8.5 (L) /8.7 (R) in
Front Tire
26x9.00-12, radial
Rear Tire
26x11.00-12, radial
Front Brakes
Dual Disc, 2 piston caliper
Rear Brakes
Dual Disc, 1 piston caliper
Steering
Electric Power Steering (EPS), Tilt steering
Turning Radius
4877 mm
Details
Overall Length
3444
Overall Width
1626
Overall Height
2019
Ground Clearance
254 mm
Curb Weight
890 kg
Fuel Capacity
13 liters
Wheelbase
2344 mm
Color Choices
Metallic Phantom Silver, Metallic Rustic Bronze

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
