2018

ADDITIONAL VEHICLE FEATURES:

  • Selectable 2WD/4WD/dual mode rear differential with diff. lock
  • Electric Power Steering (EPS)
  • Continuously Variable Transmission (CVT) with (H,L,N,R)
  • Steel front bumper and steel cargo bed
  • High output LED Headlights
  • Sun top and special color and graphics

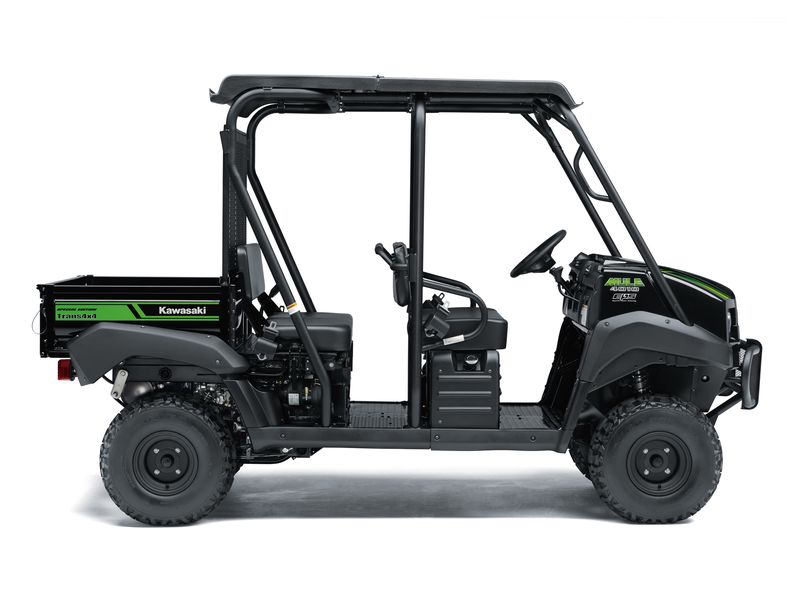

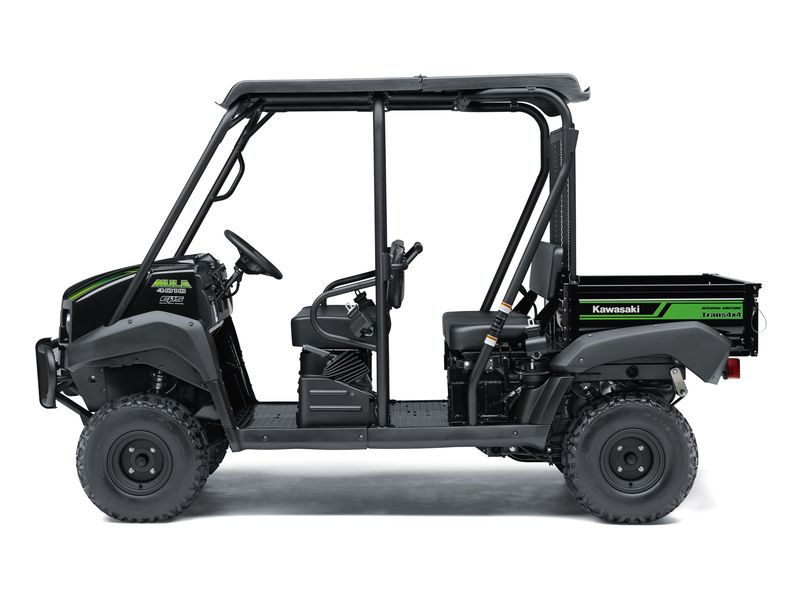

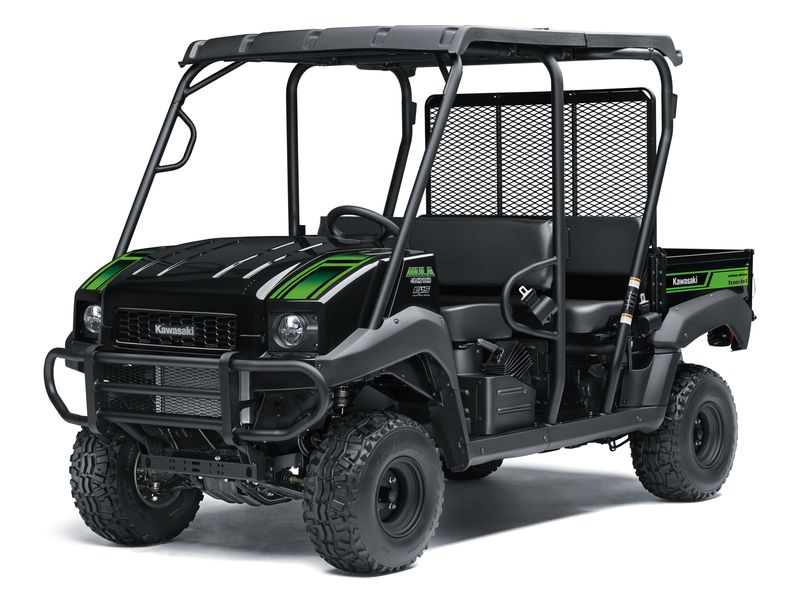

MULE 4010 TRANS4x4 SE
Power
Engine
4-stroke, 2-cylinder, OHV, 90° V liquid-cooled
Displacement
617
Bore x Stroke
76.0 x 68.0mm
Compression Ratio
10.3:1
Fuel System
DFI® with 34mm Mikuni throttle body
Transmission
Continuously Variable Transmission (CVT) with high and low range, forward, neutral and reverse
Final Drive
Shaft, selectable 4-wheel drive with dual-mode rear differential, 2WD/4WD rear differential lock
Performance
Front Suspension / Wheel Travel
MacPherson Strut/3.9 in
Rear Suspension / Wheel Travel
Semi-independent, De Dion axle with leaf springs and shocks/71.1 mm
Front Tire
23x11.00-10
Rear Tire
23x11.00-10
Front Brakes
Drum
Rear Brakes
Drum
Details
Overall Length
3263
Overall Width
1485
Overall Height
1925
Ground Clearance
180.3 mm
Curb Weight
719 kg / 734 kg (SE)
Fuel Capacity
23.8 Litres
Wheelbase
2164 mm
Seating Capacity
4

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
