2019

ADDITIONAL VEHICLE FEATURES:

  • Maxxis® Bighorn tires
  • Double-X steel tube frame
  • Additional DC outlet in rear
  • 4 LED headlights
  • Sun top
  • 14-inch aluminum wheels


TERYX4 LE
TERYX4 LE
TERYX4 LE
colors

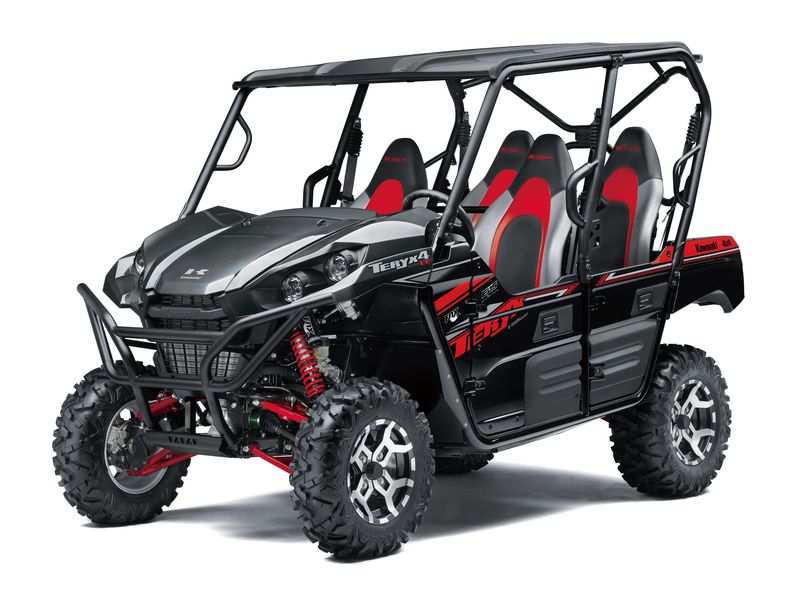

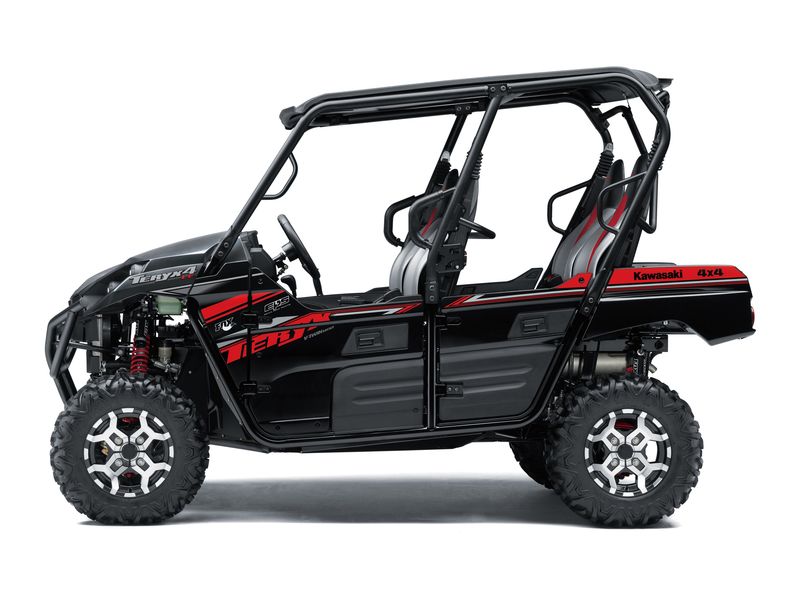

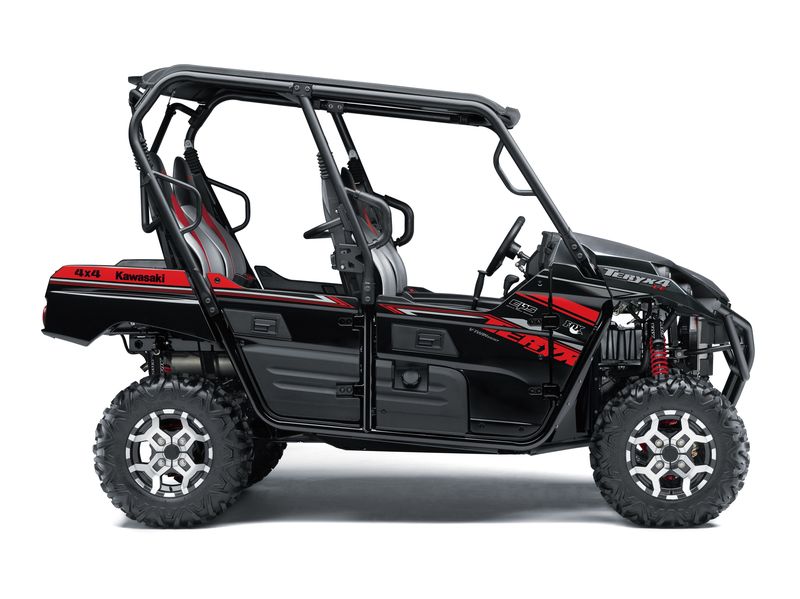

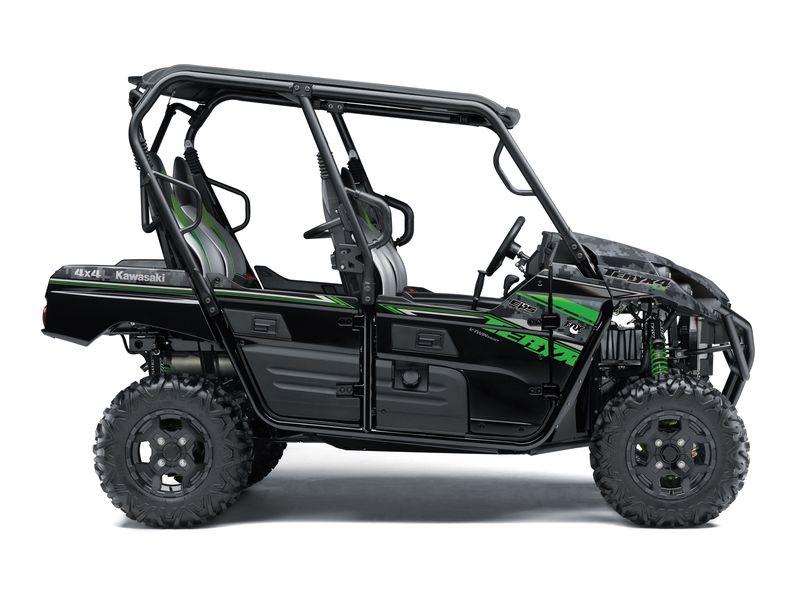

MIRROR COATED MATTE SPARK BLACK / CANDY FLAT BLAZED GREEN

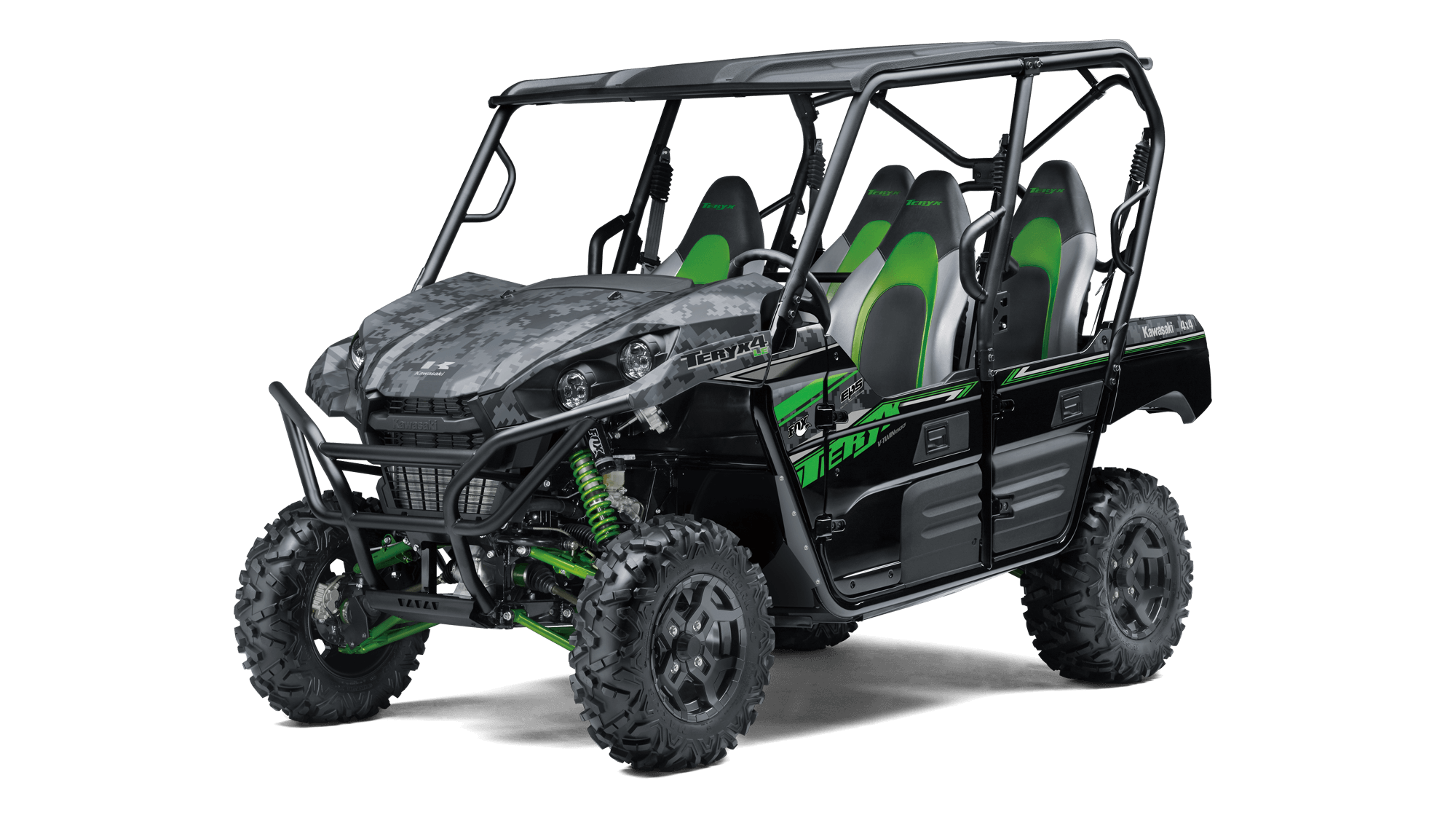

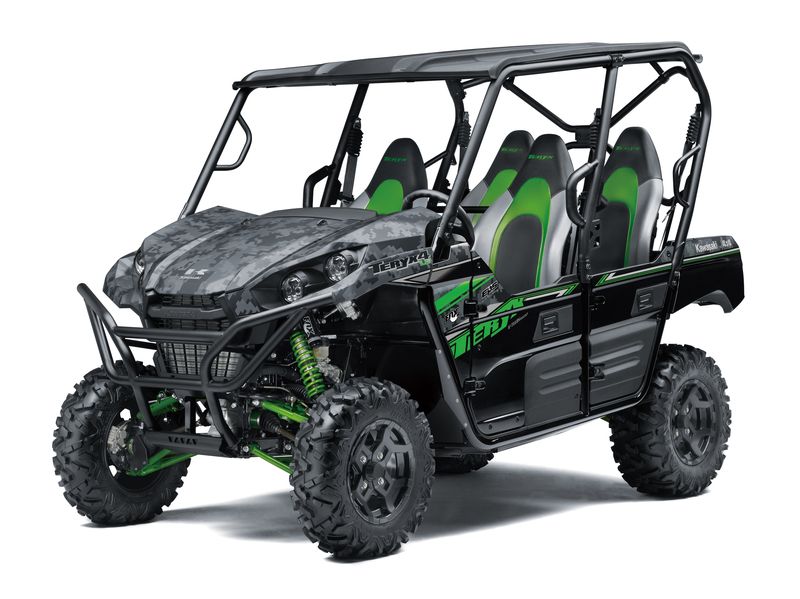

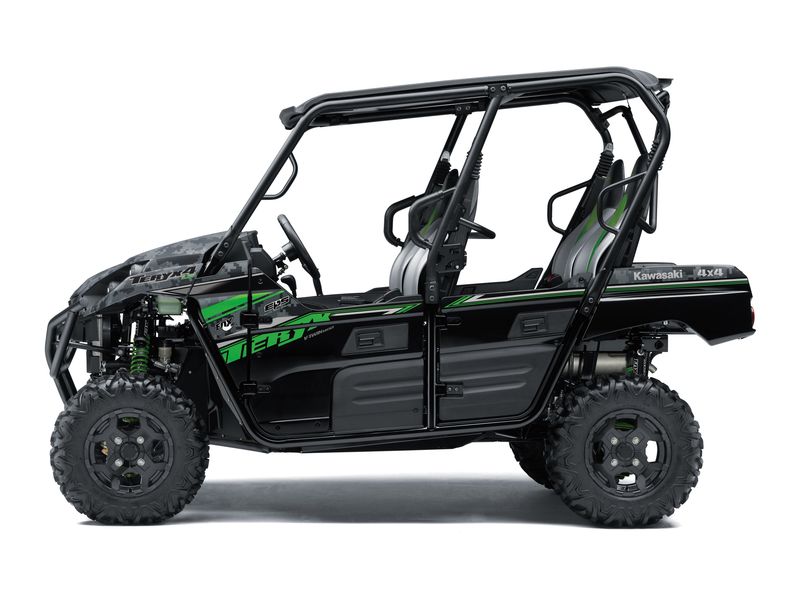

MATRIX CAMO GRAY

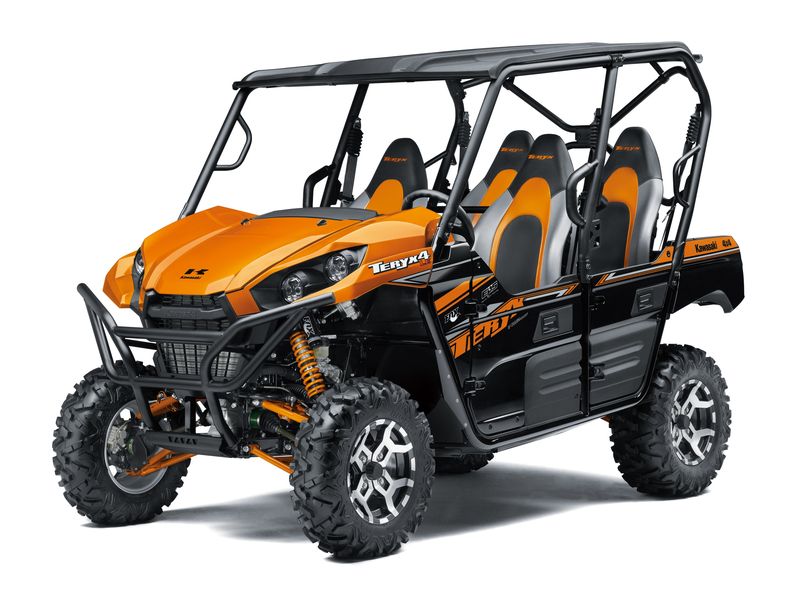

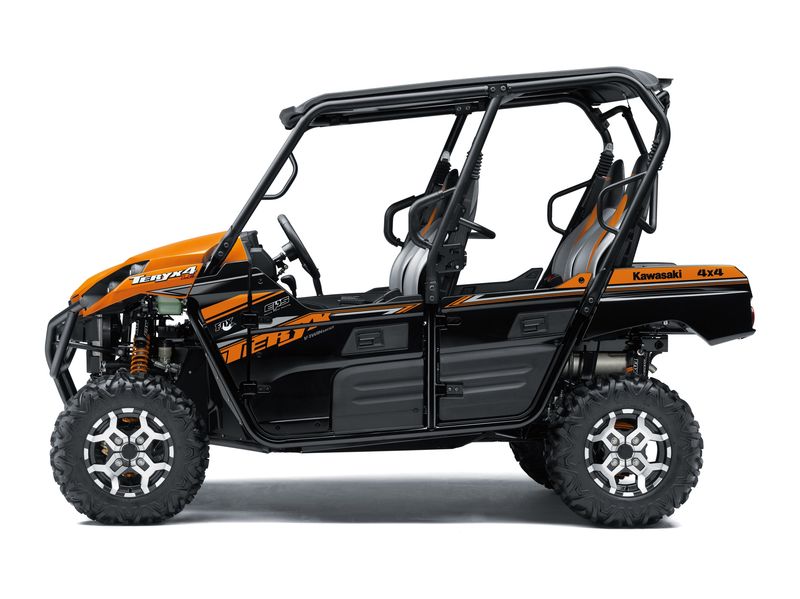

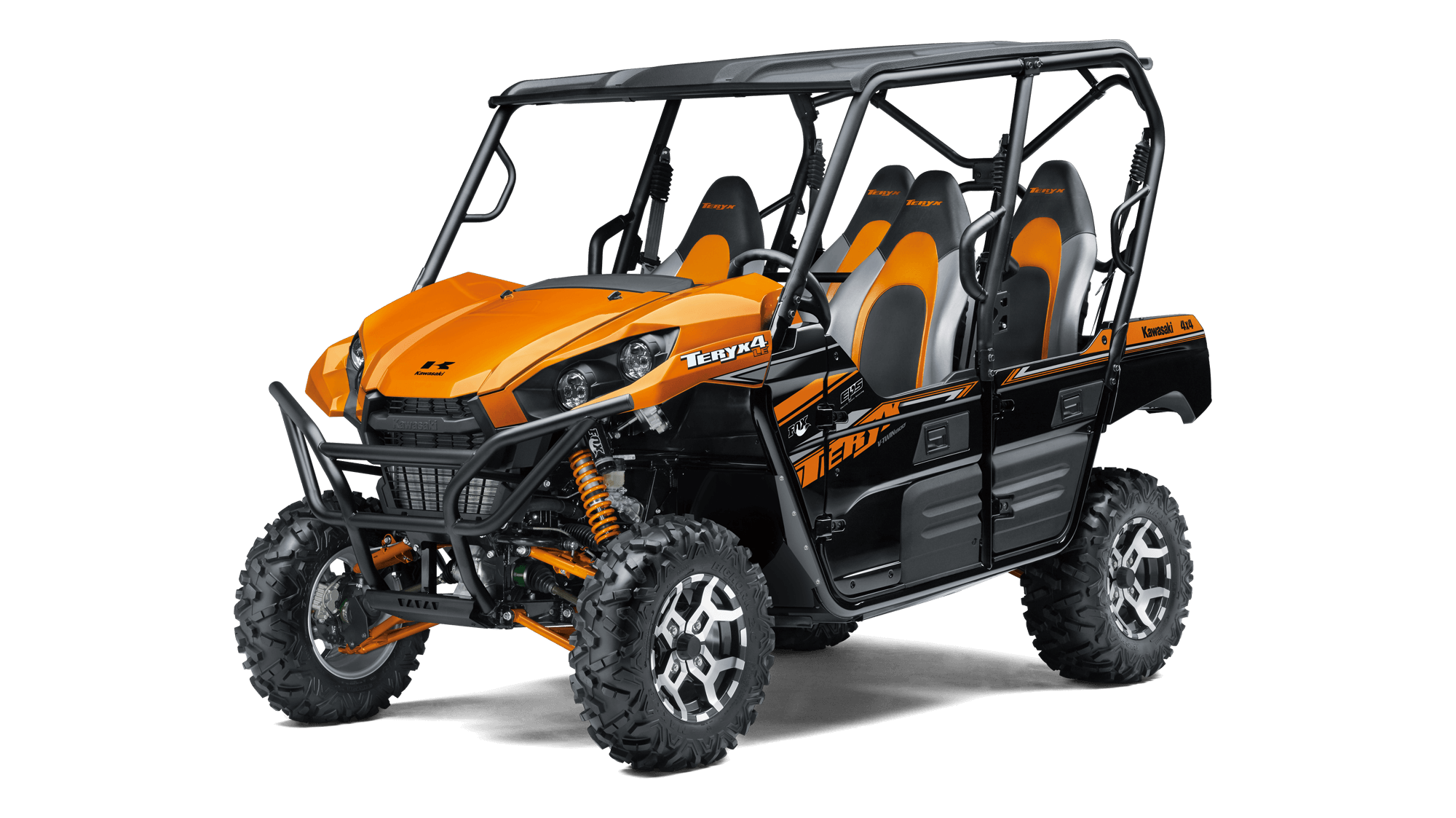

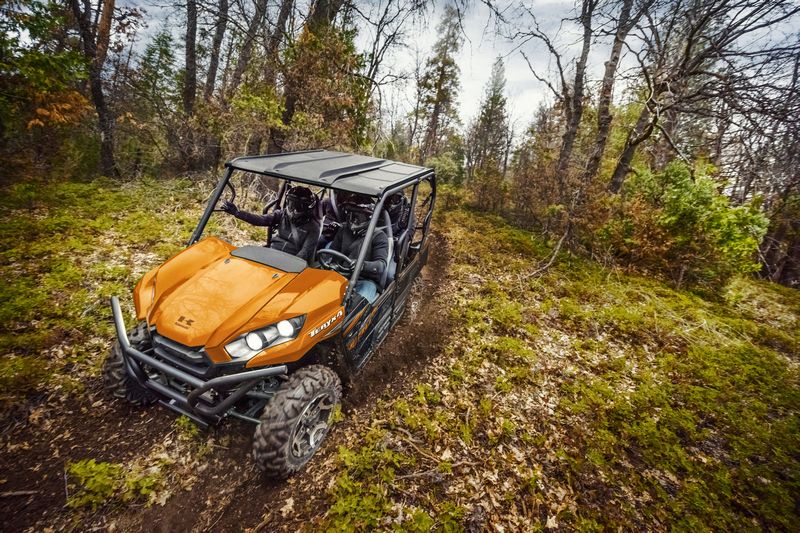

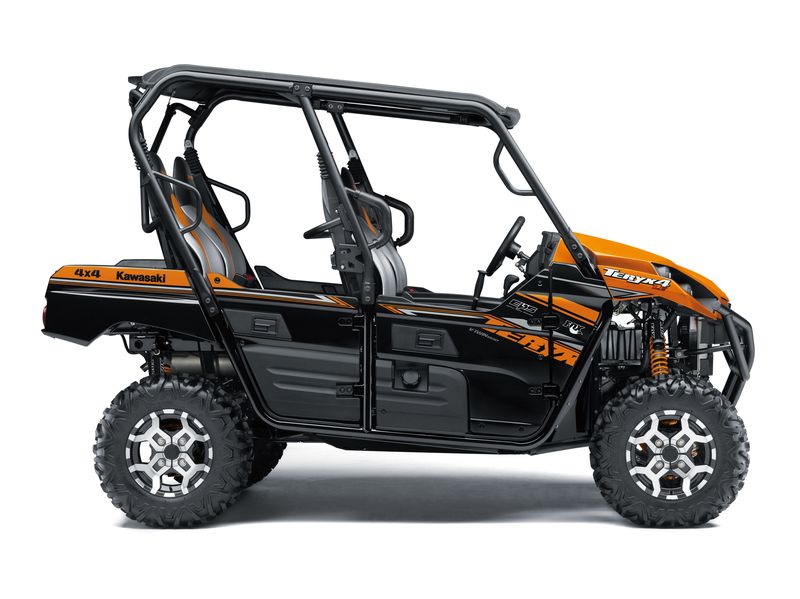

CANDY STEEL FURNACE ORANGE

Power
Engine
4-stroke, SOHC, 4-valve V-twin, liquid-cooled
Displacement
783
Bore x Stroke
85.0 x 69.0mm
Compression Ratio
10.7:1
Fuel System
DFI® with two 36mm Mikuni throttle bodies
Ignition
TCBI with electronic advance
Transmission
Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive
Selectable 2WD/4WD with locking front differential, shaft
Starting System
Electric
Performance
Front Suspension / Wheel Travel
Double Wishbone; Fox Podium coil-over shocks with piggyback reservoir, adjustable preload and 24-way compression damping/203 mm
Rear Suspension / Wheel Travel
Rear Suspension / Wheel TravelDouble Wishbone; Fox Podium coil-over shocks with piggyback reservoir, adjustable preload and 24-way compression damping/211 mm
Front Tire
Maxxis 27 x 9-14
Rear Tire
Maxxis 27 x 11-14
Front Brakes
Dual hydraulic discs with two-piston calipers
Rear Brakes
Sealed, oil-bathed, multi-disc
Details
Overall Length
3185
Overall Width
1565
Overall Height
2024
Curb Weight
739 kg
Fuel Capacity
36 liters
Wheelbase
2174 mm
Color Choices
Metallic Carbon Gray, Candy Steel Furnace Orange, Matrix Camo Gray
Seating Capacity
4

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
